Model 1010 Base Mount
- Model 1012On delay
- Off delay
- Pulsed interval
- Maintained interval
The Model 1010 is a plug-In DPDT relay that is useful in applications requiring a fast timing cycle rate and multiple operations in a short period of time.
Product SheetInput
Voltage: 120VAC, 230VACFrequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Electromechanical relay (solid state available as accessory)Rating: 10A @ 240VAC maximum
Timing
Timing Function: On delay, Off delay, Pulsed inteval, Maintained intervalRepeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: Optional LED - ON when timing (off delay - LED ON when output)energized)
Timing Ramp: 0.06 sec minimum time - 100kΩ/sec, 0.5 sec minimum time - 10k_/sec

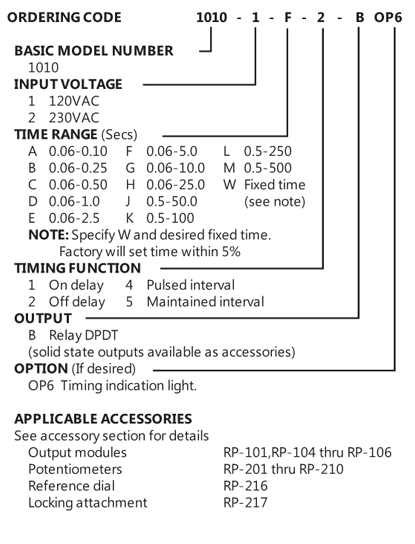

Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure

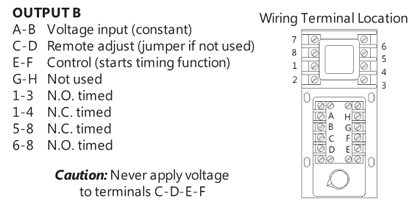

Control Terminals: E-F
Voltage Present at Control Terminals: 24 VDC min., 40VDC max.
Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum

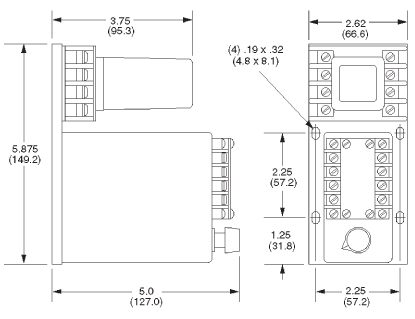

Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
