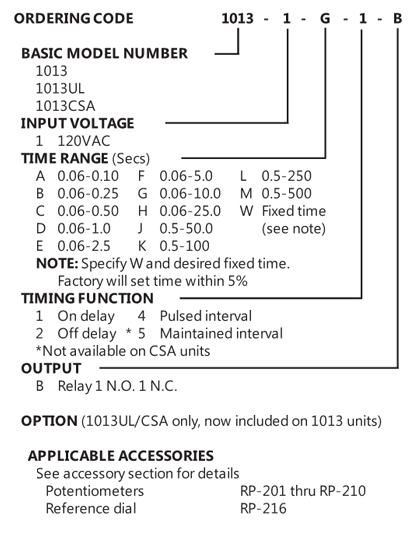

Model 1013UL Base Mount

Input

Voltage: 120VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer

Output

Type: Electromechanical relay
Rating: 10A @ 240VAC maximum

Timing

Timing Function: On delay, Off delay, Pulsed interval, Maintained interval
Repeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: 1013 - LED,ON when timing 1013UL/1013CSA - Optional incandescent light, ON when timing (off delay - light ON when output energized)
Timing Ramp: 0.06 sec minimum time - 100kΩ sec, 0.5 sec minimum time - 10kΩ sec
Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure
Control Terminals: E-F
Voltage Present at Control Terminals: 24 VDC minnimum, 40VDC maximum

Physical

Operating Temp: 0° to 50° C (32° to 120° F)
Timing Variation vs. Temp: ± 5% maximum

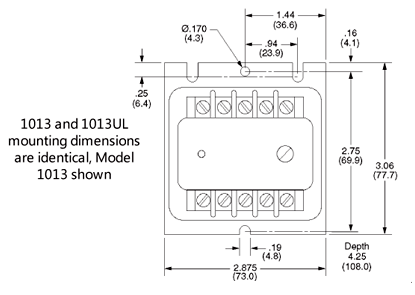

Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
