Model 1014 Base Mount
- On delay
- Off delay
The 1014 Model features instant contacts that simplify the timing control circuit. A separate relay, which operates in conjunction with the input power switch or control device, can be used to operate a separate control function. Timing function controls the timing relay. AC Control Circuit is compatible with both standard mechanical switches and solid-state proximity sensors.

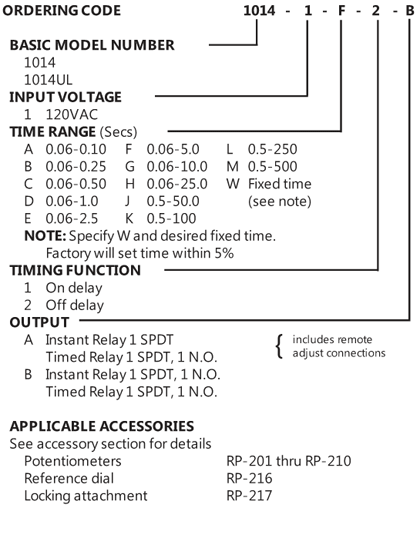

Product Sheet
Input
Voltage: 120VACFrequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Two electromechanical relayRating: 10A @ 240VAC maximum
Timing
Timing Function: On delay, Off delayRepeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: LED, ON when timing
Timing Ramp: 0.06 sec minimum time - 100kΩ sec, 0.5 sec minimum time - 10kΩ sec
Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure or AC proximity sensor

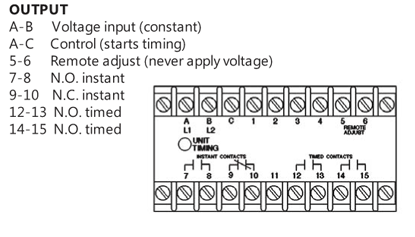

Control Terminals: A-C
Voltage Present at Control Terminals: Same as input voltage

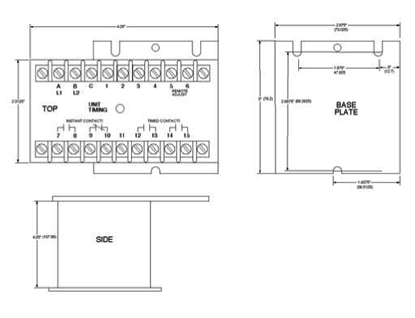

Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum
Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
