Model 1014UL Base Mount

Model 1014UL Base Mount

  • On delay
  • Off delay

Instant Contacts simplify the timing control circuit. A separate relay, which operates in conjunction with the input power switch or control device, can be used to operate a separate control function. Timing function controls the timing relay. AC Control Circuit is compatible with both standard mechanical switches and solid-state proximity sensors.



Product Sheet

Input

Voltage: 120VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Transient Protection: Isolation transformer

Output

Type: 10 VA maximum
Rating: 10A @ 240VAC maximum

Timing

Timing Function: On delay, Off delay
Repeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: LED, ON when timing
Timing Ramp: 0.06 sec minimum time - 100kΩ/sec 0.5 sec minimum time - 10kΩ/sec
Time Range: 0.06 to 500 secs in 12 ranges
Range Tolerance: ± 10%
Control: Isolated contact closure or AC proximity sensor

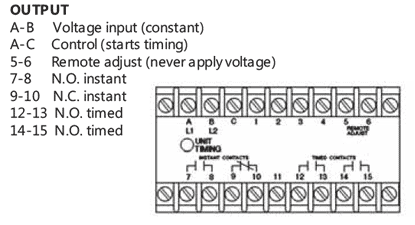

Control Terminals: A-C

Physical

Operating Temp: 0° to 50° C (32° to 120° F
Timing Variation vs. Temp: ± 5% maximum

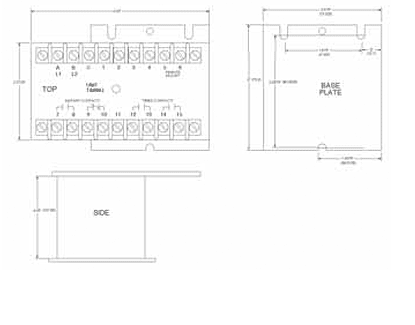

Mounting: Base mount
Termination: Terminal blocks of face timer
Housing: Metal
