Model 1105C Plug-In or Panel

Model 1105C Plug-In or Panel

The 1105C features two 2 input and 5 input functions and a large, 6 digit LCD display.



 CSA File No. LR92815

Product Sheet

Input

Voltage: 100 to 240VAC or 12-24VDC
Frequency: 50/60 Hz (AC models)
Power Consumption: 2.5VA (AC models),2.5W (DC models)
Transient Protection: MOV

Output

Type: Multifunction
Rating: Relay...5A @ 250VAC (resistiveTransistor...100mA, 30VDC maximum)
Mechanical Life: 10,000,000 operations(Relay only)
Electrical Life: Relay...100,000 operations minimum (at full rated load)Transistor...10,000,000 operations minimum

Physical

Operating Temp: -10° to 50° C (14° to 120° F)
Mounting: Plug-In or Panel

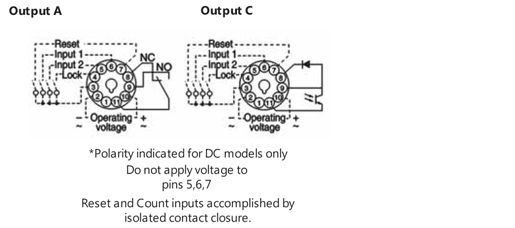

Termination: Relay output - 11 pin socketTransistor output - 8 pin socket
Housing: Polycarbonate
