Model 1230 Plug-In

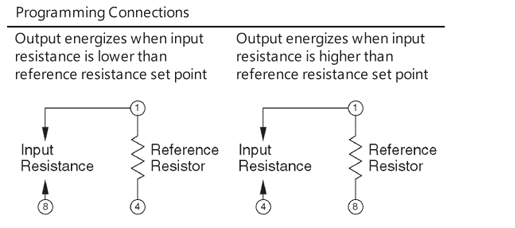

1230 Delay Timer is programmed by installing a reference resistance across input programming pins.
Product SheetInput
Voltage: 90 to 140VACFrequency: 50/60 Hz
Power Consumption: 20 mA
Transient Protection: Transformer
Output
Type: N.O. Triac (optically isolated, 1500 Vrms)Rating: 1.0A rms max continuous15A inrush (16 msec @ 60Hz)

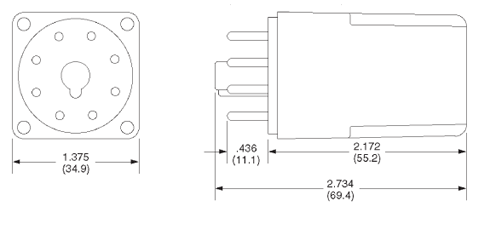

Physical
Operating Temp: -25° to 70° C (-13° to 160° F)Mounting: Plug-in
Termination: 8 pin socket
Housing: Plastic
