Model 1232 Base Mount
- On delay – Off delay (independently adjustable)
The 1232 delay timer is recommended for situations where initial contact may be poor or the item to be detected may bounce against the sensing probes. The output operates when sensing probes come in contact with a material which provides a resistance value lower than the set resistance and after set on-delay.
Product SheetInput
Voltage: 120VAC, 24VAC/DCFrequency: 50/60 Hz
Tolerance (voltage): ± 10% of nominal
Power Consumption: 10 VA maximum
Transient Protection: MOV
Output
Type: Electromechanical RelayRating: 10A @ 240VAC maximum
Timing
Timing Function: On delay - Off delay (independently adjustable)Repeat Accuracy: ± 0.5%
Time Range: 0.05 to 1.0 seconds

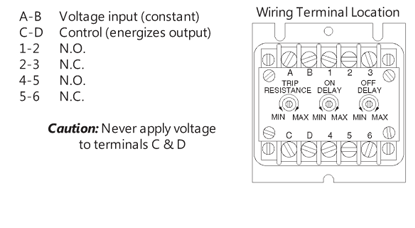

Control: Resistance applied to terminals C & D

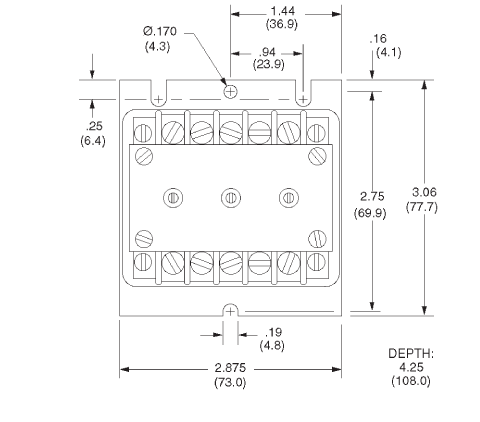

Physical
Operating Temp: 0° to 70° C (32° to 158° F)Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
