Model 1262 Base Mount
- Motion Detector
The 1262 can be supplied with an initial start time delay which energizes the output for the time specified when the power is applied to the unit.
Input
Voltage: 120VACFrequency: 50/60 Hz
Tolerance (voltage): ± 10% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Electromechanical relayRating: 10A - 1/6 HP at 120VAC, 1/3 HP at 240VAC
Timing
Timing Function: Motion DetectorRepeat Accuracy: ± 1% of setting
Indication: LED indicates unit timing and outputenergized
Timing Ramp: .02 sec minimum time - 1MΩ/sec0.06 sec minimum time - 100KΩ/sec0.5 sec minimum time - 10KΩ/sec
Time Range: 0.02 to 1000 secs in 13 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.

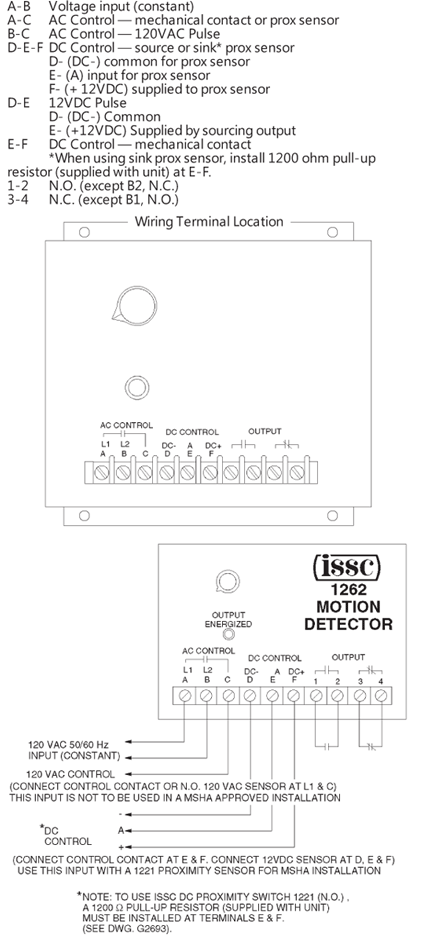

Control Terminals: A-B-C-D-E-F
Voltage Present at Control Terminals: A - C : Same as input voltage B - C : 120VAC pulseD - E - F : 12VDCD - E : 12VDC pulse
Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum

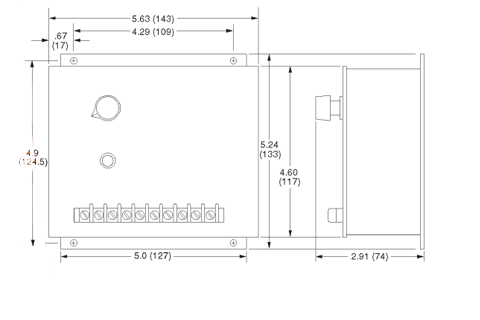

Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
