Model 1505 Base Mount

Model 1505 Base Mount

  • On Delay

The 1505 is an on delay timer, built specifically for continuous duty and electric utility applications capable of high voltage DC switching. It is equipped with transient protection and housed in a metal enclosure for maximum noise immunity. The timing dial is calibrated in AC cycles at 60Hz. or seconds.

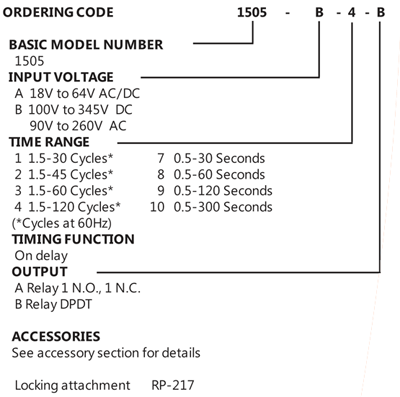

Product Sheet

Input

Voltage: 18V to 64V AC/DC, 100VDC to 345VDC, 90VAC to 260VAC
Frequency: 50/60 Hz or DC
Power Consumption: 16 W Maximum
Transient Protection: TVS

Output

Type: Electromechanical relay
Rating: 3A @ 150 VDC maximum, 10A @ 240 VAC 80% PF maximum

Timing

Timing Function: On Delay
Repeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Time Range: 1.5 to 120 cycles in 4 ranges or 0.5 to 300 sec in 4 ranges
Range Tolerance: ≤ 10%

Physical

Operating Temp: 40° to 65° C (40° to 150° F)
Timing Variation vs. Temp: ± 5% maximum

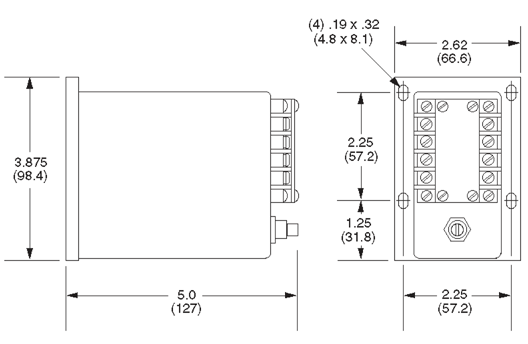

Mounting: Base Mount

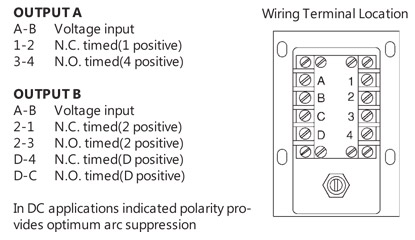

Termination: Terminal blocks on face of timer
Housing: Powder Coated Steel
