Model 2210 Surface Mount #8 or #10 screw
- On Delay
The 2210 is designed for use as a maintenance reminder or lockout, it starts timing upon application of input power and retains count during removal of power. Input power frequency is used for an accurate time base. A six position dip switch selects the desired time delay. Switch settings can only be changed when output is on. A status LED indicates unit is timing. The solid state 1 Amp output can handle a variety of loads.
Product SheetInput
Voltage: 24VAC, 120 VAC or 240 VACFrequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 2VA maximum
Transient Protection: Protected
Output
Type: Solid State N.O. Zero Voltage CrossingRating: 1A @ 240VAC/DC max.
Voltage Drop:: <1.6 volts at 1A
Timing
Timing Function: On DelayTime Range: 1 minute to 10230 days in 3 ranges
Range Tolerance: <250 msec per application of power
Control: Power applied to input initiates timing cycle

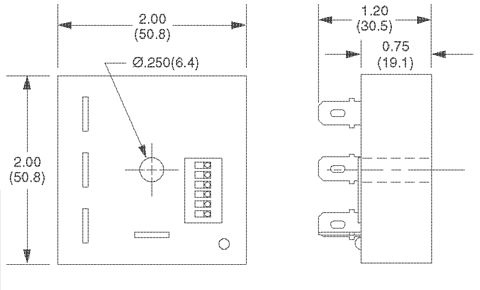

Physical
Operating Temp: 0°C to 70°C (-32° to 155° F) extended temperature range available - contact factoryMounting: Surface with #8 or #10 screw
Termination: 0.250 inch male quick connect terminals
Housing: Plastic
