Model TMS-D

Model TMS-D

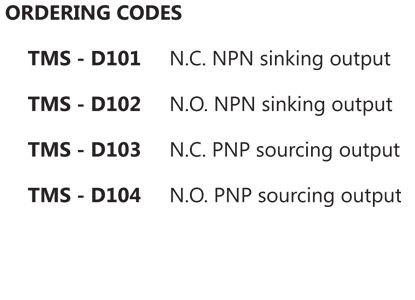

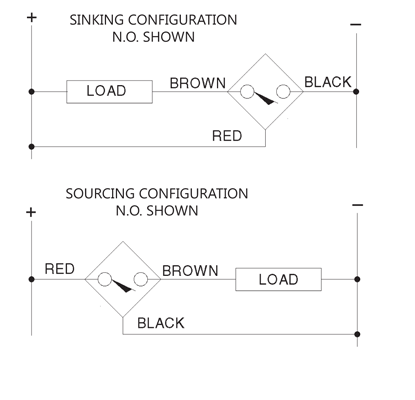

The TMS-D is a compact, tubular magnet sensor. It offers a high sensitivity to magnetic field and a high switching speed. Many types of magnets including electromagnets can be used for actuation. Sourcing and sinking options in both normally open and normally closed configurations are offered, reverse polarity protection is included on all models.

Product Sheet

Input

Voltage: 9 to 26 VDC,10% ripple allowed

Physical

Operating Temp: -40° to 85+° C

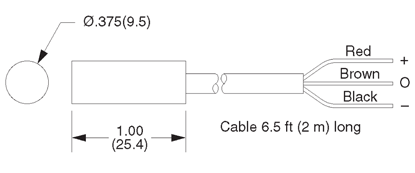

Termination: 2m PVC insulated cable 3x24 AWG
Housing: Diallyl Phthalate
Environmental Rating:: NEMA 1,3,4,4x,6,13,IP67
