Model 1090 DIN-Pin Panel Mount
- Programmable (ON or OFF Delay
- Repeat cycle OFF/ON Start
- Pulse one-shot
- one-shot OFF/ON One shot ON/OFF
- one cycle maintained interval)
The Kanson 1090 timer offers 8 programmable timing functions, an auto-calibrating dial and LED indicators for Power and Contact status.
CSA File No. LR92815
Input
Voltage: 100-240VAC, 24VAC/DC, 12VDCFrequency: 50/60 Hz or DC
Tolerance (voltage): -15% to +10% of nominal
Power Consumption: 10VA(100-240VAC), 2.5VA (24VAC), 2W(12/24VDC)
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 5 A @ 240VAC maximum (resistive)
Mechanical Life: 20,000,000 operations
Electrical Life: 100,000 operations minimum (at full rated load)
Timing
Timing Function: Programmable (ON or OFF Delay, Repeat cycle OFF/ON Start, Pulse one-shot, one-shot OFF/ON One shot ON/OFF, one cycle maintained interval)Repeat Accuracy: ± 0.3% of setting
Reset Time: 100 msec minimum
Time Range: 0.1 secs to 500 hours in 16 ranges
Physical
Operating Temp: -10° to 50° C (14° to 122° F)Timing Variation vs. Temp: ± 2% maximum

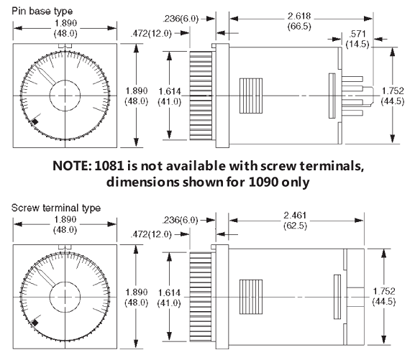

Mounting: DIN-Panel Mount

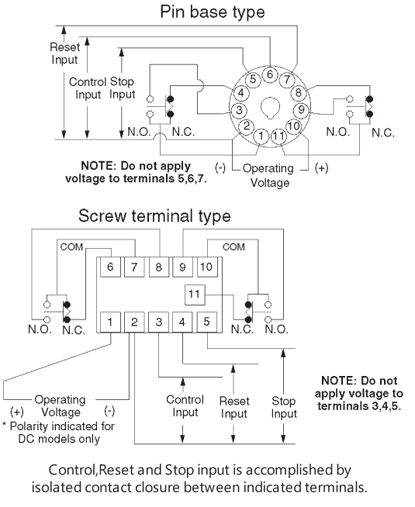

Termination: 11 pin socket or screw terminals
Housing: Polycarbonate
