Model 1061 Base Mount
- repeat cycle (start ON or start OFF)
The 1061 Interval Timer has a solid-state design with internal wiring to input power directly to timed output terminals.
Product Sheet
Input
Voltage: 120VACFrequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer
Output
Type: Solid StateRating: C output 35VA continuous, 150VA in rush @ 120VAC, C2A output 5A continuous, 12.5A in-rush @ 120VAC
Timing
Timing Function: repeat cycle (start ON or start OFF)Indication: Optional incandescent light - ON when output energized
Timing Ramp: 0.06 sec min time - 100kΩ/sec, 0.5 sec min time - 10kΩ/sec
Time Range: 0.06 to 500 secs in 9 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure

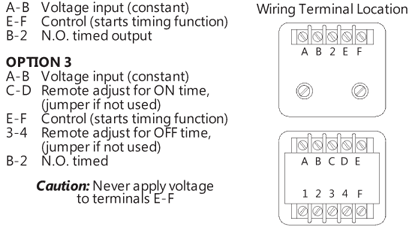

Control Terminals: E-F
Voltage Present at Control Terminals: Same as input voltage , 24 VDC minimum, 40VDC maximum (OP7)
Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum

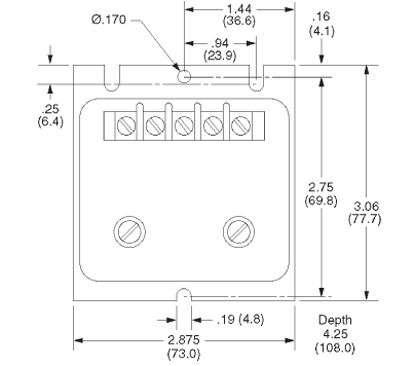

Mounting: Base Mount
Termination: Terminal blocks on face of timer
Housing: Metal
